115/230 Volt AC Gerotor Gear Oil Pump

*Free shipping Excludes Hawaii and Alaska

*Image is a representation of this item. Actual item may vary.*
Hover over image to zoom

GPI

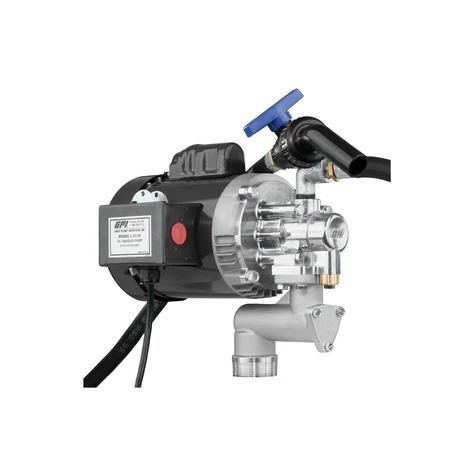

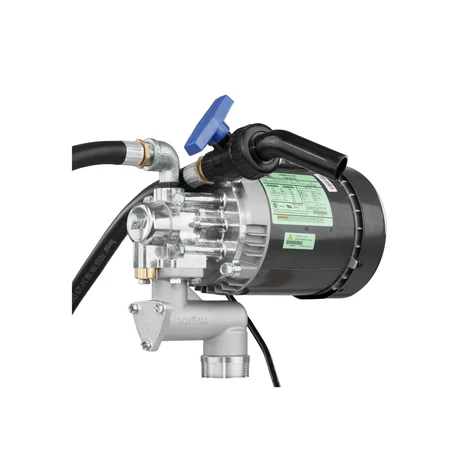

142100-01 115/230 Volt AC Gerotor Gear Oil Pump

16 QPM (15 LPM) Aluminum Housing, 1 in. Inlet x 3/4 in. Outlet, For Oil (up to 90W), Waste Oil and Hydraulic Fluid

Ships From Manufacturer

Select Model & Quantity:

Model # Description Price Qty
142100-01 16 QPM (15 LPM) Aluminum Housing, 1 in. Inlet x 3/4 in. Outlet, For Oil (up to 90W), Waste Oil and Hydraulic Fluid $749.99
Contact Us
GPI - 142100-01 - 115/230 Volt AC Gerotor Gear Oil Pump

GPI 115/230 Volt AC Oil Transfer Pumps are specifically designed for use with high viscosity fluids like oil. These weatherproof pumps will give you years of service when used correctly with the right fluids.

Consider the Viscosity of the Fluid being Pumped and Temperature Range when Choosing the Best Oil Pump for your Particular Application.

  • 115/230 Dual Volt AC - Aluminum Housing - Gerotor Gear
  • Built with Rugged Motors for Long-Life and Limited Maintenance
  • Works Great with Drums, Bulk Tanks and Waste Oil Reserves
  • Durable and Easy to Handle
  • Built-In Easy Access Inlet Screen & By-Pass Valve
  • Gerotor Gear Positive Displacement Self-Priming
  • Use with Antifreeze, Hydraulic Fluid, Mon-Flammable Oil Based Solvents and Motor, Gear or Waste Oil
  • Do Not use with Gasoline or Diesel Fuel

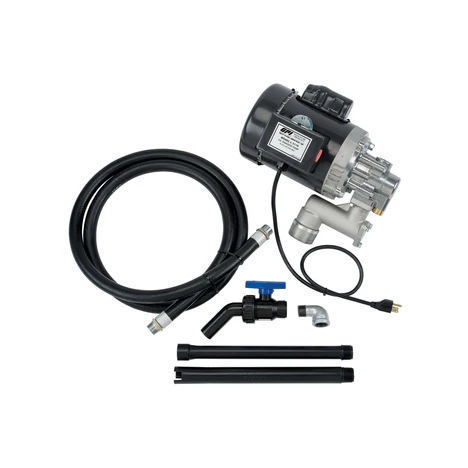

  • Unit Includes: Pump, 2-pc. Suction Pipe, 8 ft. Hose, 90 Degree Street Elbow, 36-inch 3-Prong Cord and Ball Valve Nozzle
  • Thermally Protected Motor
  • UL Recognized Component
  • 1-Year Warranty
  • Model:  L-5116
  • Voltage &Type:  115/230 Dual Volt AC - Aluminum Housing - Geroter Gear
  • Flowrate:  Up to 4 GPM, Up to 16 QPM (15 LPM)
  • Nozzle:  Ball Valve Nozzle
  • Inlet:  1 in.
  • Outlet:  3/4 in.
  • Operating Temperature:  Maximum temperature is +140°F (+60°C)
  • Bypass Pressure:  50 psig
  • Duty Cycle:  30 minutes on/30 minutes off
  • Power Cord:  36 3-Prong Grounded Plug
  • Hose Length:  8 ft.
  • Hose Diameter:  3/4 in.
  • Motor Protection:  Thermally protected
  • Current Draw:  7.5 amps
  • Suction Lift:  Varies with oil viscosity
  • Suction Pipe:  Two-piece
  • Use With:  Oil (up to 90 weight), waste oil, hydraulic fluid, antifreeze and non-flammable oil-based solvents
  • Approvals:  Motor is UL recognized component and CSA approved
  • Unique Feature:  Rugged 1/2 horse power motor design for long life and limited maintenance
  • Warranty:  1 Year
GPI Oil Chart"
