Fill-Rite FR1205HE 12 Volt DC Fuel Transfer Pump
15 GPM, Pump Only, BSPP Fittings, Export Model
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| FR1205HE | 15 GPM, Pump Only, BSPP Fittings, Export Model | $404.99 |

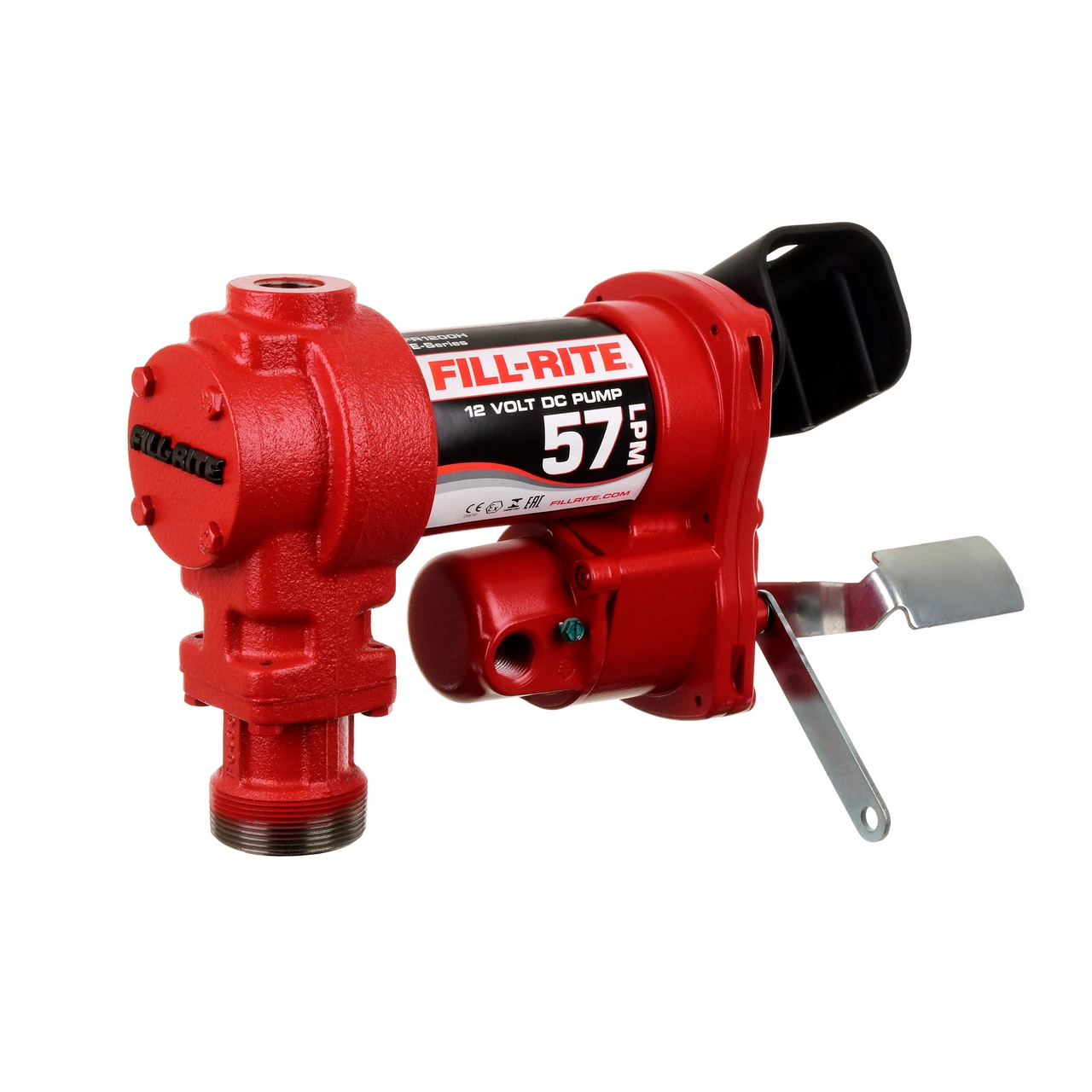

Fill-Rite - FR1205HE - 12 Volt DC Fuel Transfer Pump
The Fill-Rite FR1205HE export model with BSPP fittings is a 12V DC heavy-duty, cast-iron, rotary vane fuel transfer pump that is capable of generating up to 57LPM. It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The FR1205HE has no additional accessories, with BSPP inlet and outlets, 5.4M three wire power cable, ground wire and cable gland connector. Made in the USA with ATEX, IECEx, INMETRO, CE, and EAC certifications and a limited lifetime warranty; this product is ideal for agriculture, construction, or any industry requiring mobile fuel transfer.
Spec Sheet- Adjustable electric junction box rotates 180°
- Reliable, heavy-duty power switch withstands heavy abuse in rugged environments
- Focused weight reduction while preserving expected heavy-duty performance
- Thermally protected motor prevents overheating to maximize motor life
- Premium paint shield for exemplary corrosion resistance
- 5.4M 3-wire power cable, ground wire, and cable gland connector as accessories
Specifications:
- Fluid Handling: Biodiesel up to B20, Diesel, Gasoline, Mineral Spirits
- 1 in. Inlet, 0.75 in. Outlet, Female Connection, BSPP
- 228 Watts
- ATEX CE EAC IECEx INMETRO Certifcation
- 20x20 Micron Strainer Mesh
- 15 GPM
- 1/4"Horse Power
- 16 PSI Operating/Discharge
