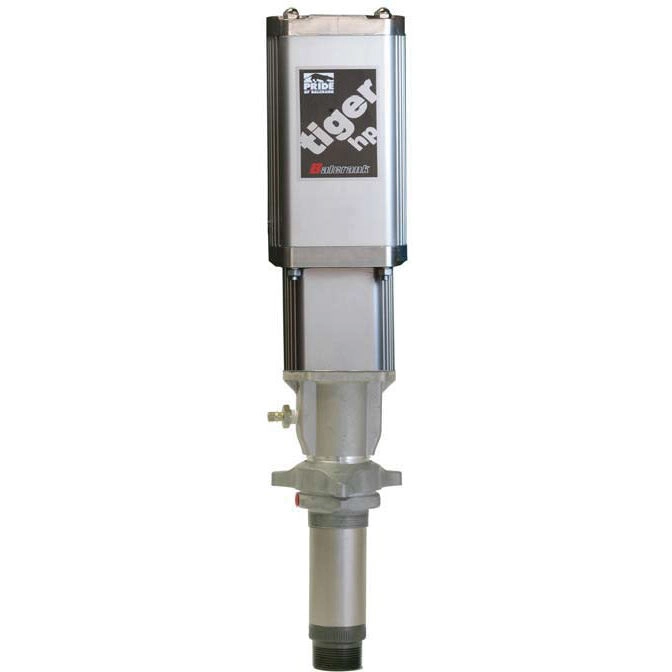

Balcrank 1130-026 Tiger™ 6:1 Pump
Carbon Steel Stub Pipe With Bung Adapter, Air Operated, For Oil, Auto-Transmission Fluid and Anti-freeze
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 1130-026 | Carbon Steel Stub Pipe With Bung Adapter, Air Operated, For Oil, Auto-Transmission Fluid and Anti-freeze | $1,292.94 |
User ManualPiston Pumps | Tiger® HP 6:1
The 6:1 ratio Tiger HP® pump can service as many as six simultaneous dispense points or transfer oil to distances up to 700 feet.
The Tiger HP® air motor features a precision air valve mechanism with dual valve ports for improved high speed breathing. It also contains a positive trip detent spool mechanism that eliminates stalling (blowing air) by preventing the pump from stopping between strokes. It has a simple yet durable construction with all internal parts lubricated at the factory using a life-tested synthetic grease.
The Tiger HP® pumping assembly features a stainless pump rod for superior wear and corrosion resistance. The pump's exterior is constructed from aircraft grade extruded aluminum for an outstanding strength and reliability. The pump also has high quality seals and is designed for long-term durability and ease of service. It is equipped with internal pressure relief to protect the system from thermal expansion.
Model#:
1130-026 - Carbon Steel Stub With Bung Adapter
Typical Applications: Automotive Dealerships, Industrial plants, Mining, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers
Fluid Types: Anti-freeze, Auto Transmission Fluid, Oil
- Pressure relief on Pride Series models - built-in safety feature reduces premature wear of hoses and seals.
- Mechanical air valve - more reliable, no stalling and no icing.
- Designed for lower air consumption - extends compressor life.
- Built-in muffler - results in quiet operation and eliminates icing.
- Stainless steel pump rod - reduces corrosion and extends seal life.
- Double acting pump - delivers consistent fluid flow with greater dispensing accuracy.
| Pump ratio: | 6:1 |
| Operating air pressure range: | 40 - 150 PSI (3 - 10 bar) |
| Pump delivery with SAE 10W-30 oil, 68° F, at 100 PSI air pressure and free flow: |
16 G/M (61 L/M) |
| Air consumption (100 PSI & 8 G/M): | 59 SCFM |
| Max fluid stall pressure @150 PSI air: | 870 PSI (60 bar) |
| Cycles per GAL: | 31 |
| Air Inlet: | 3/8"in. NPT (F) |
| Fluid Inlet: | 1 in. NPT (F) 1-1/2"in. NPT (M) |
| Fluid Outlet: | 3/4"in. NPT(F) |
| Effective Air Piston diameter: | 3.2 in. (81 mm) |
| Wetted Materials: | Carbon steel, Buna-N™ Stainless steel, Nickel plated steel, Nylon, Ultrathane, and Viton |
