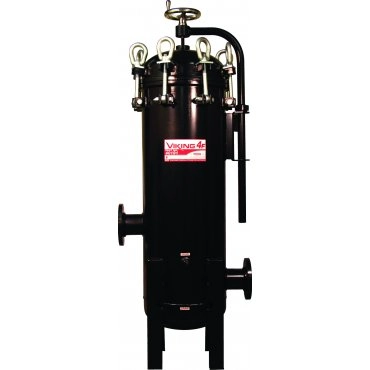

Cim-Tek Viking-4 Series Viking 4F Filter Housing
500 GPM, 4 in. Flanged Inlet/Outlet
Ships From Manufacturer
Select Model & Quantity:
| Model # | Description | Price | Qty |
|---|---|---|---|
| 40191 | 500 GPM, 4 in. Flanged Inlet/Outlet | $8,015.31 |
Add Optional Accessories
| Model # | Description | Price | Qty |
|---|---|---|---|
| E1300-02 (4 PK) | Cellulose/Microglass Media Filter Element - 2 Micron, 6 in. x 18 in., Cellulose/Microglass Blend (4 Pack) | $240.71 | |
| 90602 | Viking 4 Differential Pressure Gauge Kit - For Viking 4F | $1,363.10 | |
| E1300-10 (4 PK) | Cellulose Media Filter Element - 10 Micron, 6 in. x 18 in., Cellulose (4 Pack) | $219.54 | |
| E1300-30 (4 PK) | Cellulose Media Filter Element - 30 Micron, 6 in. x 18 in., Cellulose (4 Pack) | $217.57 | |
| E1300HS-30 (2 PK) | Hydrosorb Media/Water Detection Filter Element - 30 Micron, 6 in. x 18 in. (2 Pack) | $220.57 | |
| E1300HS-10 (2 PK) | Hydrosorb Media/Water Detection Filter Element - 10 Micron, 6 in. x 18 in. (2 Pack) | $221.47 | |
| E1300MG-3 | Microglass Media Filter Element - 3 Micron, 6 in. x18 in. | $151.11 | |
| E1300MG-5 | Microglass Media Filter Element - 5 Micron, 6 in. x18 in. | $147.98 | |
| E1300MG-10 | Microglass Media Filter Element - 10 Micron, 6 in. x18 in. | $144.82 |
Cim-Tek Viking-4 Filter Housing Assembly
Application- Capable of filtering gasoline, ethanol blends up to E15, biodiesel blends up to B100, diesel fuel, ultra-low sulfer diesel (ULSD), and fuel oils
- Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered
- Bulk fueling racks and bulk fluid transfer
- 500 gpm (1892.7 lpm) maximum flow
- 150 psi rating
- Standard 4 in. NPT inlet/outlet flow
- Epoxy coated on inside and outside
- 8 bolt swing away lid
- Inlet to outlet dimensions 28 in.
- Carbon steel housing
- 1/4 in. ports for the optional pressure gauge kit
- Requires 4, 6 in. x 18 in. elements
- Removes common contaminates such as dirt, dust, and rust
- Increased filtering capacity
- Convenient housing drain
- Easy opening access and extra secure seal with 8 bolt swing lid
- Wide variety of filtering applications
- Full ASME certification available
| Part # | Model # | Flow | PSI | NPT | # of Elements Required |
|---|---|---|---|---|---|
| 40186 | Viking 1 | 120 gpm | 150 psi | 2 in. NPT | 1 |
| 40187 | Viking 1F | 120 gpm | 150 psi | - | 1 |
| 40188 | Viking 2 | 150 gpm | 150 psi | 2 in. NPT | 2 |
| 40189 | Viking 2F | 150 gpm | 150 psi | - | 2 |
| 40190 | Viking 3F | 300 gpm | 150 psi | - | 4 |
| 40191 | Viking 4F | 500 gpm | 150 psi | - | 8 |
Viking Element Spec Sheets
E-1300-02 Spec SheetE-1300-10 Spec SheetE-1300-30 Spec SheetE-1300HS-10 Spec SheetE-1300HS-30 Spec SheetE-1300MG-03 Spec SheetE-1300MG-05 Spec SheetE-1300MG-10 Spec SheetReplacement Elements for particulate removal in Cim-Tek Viking housings.
Application- Filters housings and receptacle elements are compatible with gasoline, diesel, methanol and ethanol blends up to E15, biodiesel up to B100, and ultra-low sulfur diesel (ULSD)
- Industrial fluids such as lubrication oils, hydraulic oils, synthetic oils, transformer oils, many solvents, and thinners may be filtered
- Demonstrated extended equipment life
- Assures delivery of quality fuels
- Wide variety of filter media options
| Part # | Model # | Micron | Media |
|---|---|---|---|
| 30066 | E-1300-02 | 2 Micron | Microglass/Cellulose Blend |
| 30008 | E-1300-10 | 10 Micron | Cellulose |
| 30009 | E-1300-30 | 30 Micron | Cellulose |
| 30204 | E-1300MG-03 | 3 Micron | High-Performance Microglass |
| 30203 | E-1300MG-05 | 5 Micron | High-Performance Microglass |
| 30202 | E-1300MG-10 | 10 Micron | High-Performance Microglass |
| 30034 | E-1300HS-10 | 10 Micron | Hydrosorb |
| 30037 | E-1300HS-30 | 30 Micron | Hyrdosorb |
